CarbonBee · Precision spraying

SmartStriker X

See the target. Apply the right dose.

Camera-based detection and intelligent application control for more selective spraying. Explore Green-on-Brown and Green-on-Green detection, flexible spray modes and retrofit opportunities.

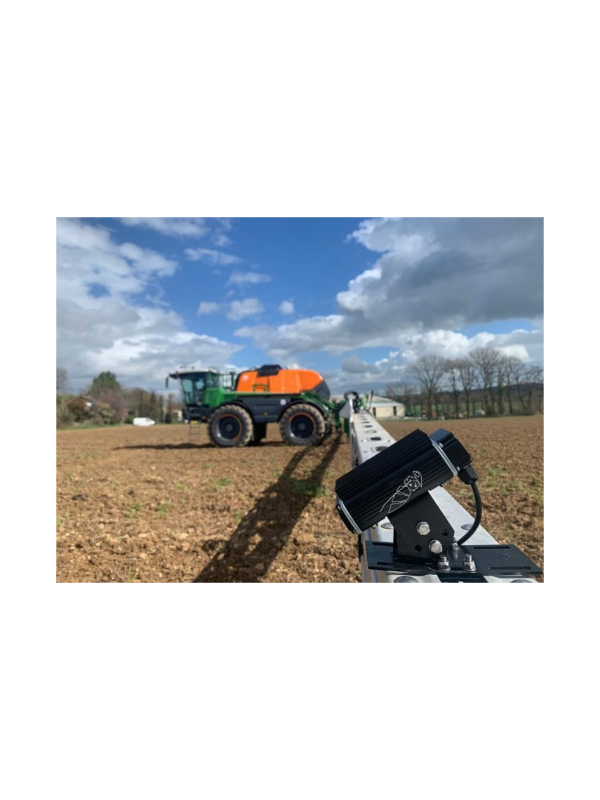

CarbonBee Sensor X installed on sprayer boom
Optical detection

Weed detection on bare ground and within crops

Explore Green-on-Brown and Green-on-Green detection for different crops and field conditions. METLAN Distribution can help assess the appropriate configuration for your application.

Green-on-Brown™

Green on Brown

Detect vegetation against bare soil or stubble to target weeds before or between crops.

Green-on-Brown detection example

Application and operating conditions must be confirmed.

Green-on-Green™

Green on Green

Distinguish weeds from the growing crop. Coverage depends on the crop model and its validated growth-stage limits.

Green-on-Green detection of weeds among maize plantsGreen-on-Green · Crop coverage
Application modes

Spot, dual rate and real-time variable-rate application

After detecting the target, the system determines how much each nozzle should apply. Select a spraying mode to explore the application strategy. Available modes depend on compatible hardware and configuration.

Sprayer viewed from above
Spot spraying: crop rows, detected targets and nozzle application
Dose by nozzle
Spot spraying dose histogram
Target only

Spot spraying: apply only on the target

A nozzle applies the selected dose when a target is detected. Between targets, it stays off.

Actual treated area and savings depend on weed pressure and field conditions.

Sprayer viewed from above
Dual-rate spraying: background and target application
Dose by nozzle
Dual-rate dose histogram
Two application rates

Dual rate: switch between two dose levels

The same nozzle applies a low background dose across the field and a higher dose on detected targets. A second tank or spray line is not required for this strategy. Both rates must remain within the selected nozzle's usable flow range and the spraying system's operating limits.

Within nozzle capacity

Illustrative example: a background rate using 25% of the nozzle's available operating capacity and a target rate using 85%. Both rates are within the assumed usable range.

Background — 25%
Target — 85%
Outside nozzle capacity

If the background application already requires 95% of the nozzle's capacity, requesting 250% of that capacity at a target is not possible. The system cannot create additional nozzle flow beyond its physical limits.

Background — 95%
Requested target — 250% (exceeds capacity)

Percentages are illustrative, not fixed nozzle specifications. Actual minimum and maximum rates depend on nozzle selection, pressure, duty cycle, flow and application requirements. METLAN Distribution can assess the proposed rate range and nozzle configuration.

Sprayer viewed from above
Modulation spraying: target biomass and variable nozzle application
Dose by nozzle
Modulation dose histogram
Biomass responsive

Modulation: adapt the dose to biomass

Each nozzle’s command varies with estimated target biomass, within selected lower and upper limits. Smaller and larger targets can receive different doses.

Both the lower and upper application rates must be achievable within the selected nozzle’s usable flow and pressure range and the spraying system’s control limits. Nozzle selection, chemical programme and control hardware must be assessed for the intended application.

System architecture

How SmartStriker X works

From detecting field targets to controlling the spray response and reviewing the mission, the system brings sensing, processing and application information together.

CarbonBee Sensor X optical camera and bracket
01 / Detect

Sensor X

Capture field targets with the boom-mounted optical sensor.

CarbonBee SmartStriker X controller
02 / Process

Controller X

Process sensor information and determine the spray response.

CarbonBee SmartStriker X operator control screen
03 / Apply

Operator interface

Configure and monitor application through the in-cab interface and compatible nozzle controls.

CarbonBee Green-on-Brown field mission map
04 / Map

Mission information

Review mapped field targets, application coverage and mission statistics.

Illustrative CarbonBee hardware and mission imagery. Available functions and application modes depend on the machine and supported spraying configuration.

Green-on-Green · Crop coverage

Green-on-Green crop applications

Explore crop-specific precision spraying opportunities with CarbonBee SmartStriker X. Available detection models, growth-stage limits and application configurations vary by crop. METLAN Distribution can help assess suitability for your farming operation.

Published crop model coverage
Crop / contextModel limit
🫘 BeanBBCH 29
🌱 Sugar beetBBCH 33
☁️ CottonBBCH 33
🌿 Grassland / dockDock detection
🌾 SorghumBBCH 19
🌻 SunflowerBBCH 19
🌽 MaizeBBCH 19
🥜 PeanutBBCH 33
🥔 PotatoBBCH 33
🌼 CanolaBBCH 29
🫘 SoybeanBBCH 29
Expanding crop applications

Explore additional crop opportunities

CarbonBee is developing and validating further crop detection models, including key Australian broadacre crops. Talk to METLAN Distribution about the current development status and options for your operation.

  • 🌾 Wheat
  • 🌾 Barley
  • 🧄 Garlic
  • 🧅 Onion
  • 🌱 Leek
  • 🫘 Lentils
Discuss crop suitability

Tell us which crops you grow and your spraying requirements. We can discuss the applicable detection models, development status and machine integration.

What does BBCH mean, and which desiccation applications are listed?

BBCH is the crop growth-stage scale. The numbers above are the upper limits stated for the current crop models, not blanket approval for every weed, field condition or growth stage. Grassland coverage specifically includes dock detection.

Green-on-Brown: detection on bare ground and stubble.

Desiccation use cases: cotton and potato up to BBCH 33;soybean up to BBCH 29.

Coverage reference: CarbonBee crop information, October 2026. Additional crops listed above are in development or validation and are not represented as commercially available.

Discuss your crop and application

Talk to METLAN Distribution about crop suitability, growth stage and your spraying setup.

Mission insights

Treatment maps and mission statistics

Review application maps, treated areas, rates and recorded mission activity. Data is stored on the machine during offline spraying and synchronises when connectivity is available.

CarbonBee mission map with maximum speed omitted and mean speed retained
Green-on-BrownStubble weed detection and selective application

These are CarbonBee manufacturer mission examples illustrating recorded field activity, application maps and treatment results. Actual performance and application savings vary depending on field conditions, weed pressure and spraying configuration. Suitable operating speeds depend on weed pressure, target detection requirements, spray setup and application conditions. METLAN Distribution works with customers to assess and optimise their system for the intended application.

Installed machine platforms

Sprayer makes with confirmed CarbonBee installations

CarbonBee installations have been confirmed on machines from the following manufacturers and sprayer ranges. This is a growing reference list, not a statement that every model or configuration is compatible.

HARDI logoHARDI
Croplands logoCroplands
JTA Sprayers logoJTA Sprayers
Goldacres logoGoldacres
Stoll logoStoll
John Deere logoJohn Deere
Case IH (Patriot) logoCase IH (Patriot)
Miller Nitro logoMiller Nitro
Challenger RoGator logoChallenger RoGator
Agrifac logoAgrifac
Apache logoApache
Fendt official logoFendt RoGator
Amazone logoAmazone
Massey Ferguson logoMassey Ferguson

Installations on a manufacturer’s equipment do not imply compatibility across its full range. Machine model, nozzle-control hardware, integration requirements and available application modes must be reviewed individually.

Discuss your sprayer with METLAN Distribution

Tell us your machine model and nozzle-control configuration so we can assess the options.

Sprayer integration

Compatible spraying systems

CarbonBee sends nozzle-level decisions. Your spraying system carries them out. SmartStriker X can work with supported PWM nozzle-control systems and other compatible spraying architectures.

Already integrated with

Raven logo
RavenHawkeye 2
ARAG logo
ARAGFlowtron
TeeJet logo
TeeJetDynaJet
CapstanAG logo
CapstanAGPinPoint III
Amazone logo
AmazoneAmaSelect
Integration in progressAg Leader logo

Ag Leader

Ag Leader integration is currently in development. Availability and supported functionality will be confirmed once integration and validation are complete.

Listed integrations do not imply universal compatibility across a manufacturer’s range, nor availability of all three modes on every configuration. Final compatibility is confirmed before installation.

Discuss spraying-system compatibility

METLAN Distribution can review your nozzle-control hardware and intended application.

Connected dealer &distributor support

Remote support to keep your system performing

CarbonBee's connected support tools give authorised dealers and distributors visibility into supported machines, helping them diagnose issues, review system operation and assist with optimisation without every enquiry requiring an immediate on-site visit.

See what the system is doing

With the appropriate access, support teams can review system health, power inputs, GPS information, sensor status, nozzle outputs and recent events. This gives technicians useful information when investigating a fault or checking system operation.

Support beyond the paddock

When a machine has suitable internet connectivity, such as Starlink or another reliable connection, authorised support personnel can use available remote diagnostic and service tools to help troubleshoot issues, review configuration and support system optimisation.

Connected fleet oversight

Dealer and distributor access also supports fleet visibility, machine owner assignments, mission reviews and statistics filtered by machine, crop or date, within the permissions granted to each user.

Need help with an installation or an operating issue?

Speak with METLAN Distribution about your machine and the support options available.

CarbonBee system health dashboard displaying power inputs, GPS, nozzle outputs and sensor status
System health dashboard — diagnostic information available to authorised support personnel

Remote access, diagnostics and software updates depend on machine connectivity, installed equipment, available service functions and authorised permissions. Some issues will still require on-machine checks or an on-site visit.

CarbonBee

CarbonBee Questions

Can I use the system at night?

RGB detection requires suitable imagery. Additional lighting is required for night operation. Discuss the proposed installation and operating conditions with METLAN Distribution.

What is involved in installation and integration?

Integration depends on the sprayer model, nozzle-control hardware and supported application modes. METLAN Distribution can review your machine and intended use before installation.

How much can I save?

Potential chemical savings depend on weed pressure, crop, field conditions and application strategy. Manufacturer mission maps show individual examples, not guaranteed results for every operation.

Application savings: CarbonBee mission examples illustrate potential reductions in chemical use. Actual results depend on weed pressure, target distribution, spraying mode and field conditions;example figures are not guaranteed outcomes.

Have a question about CarbonBee?

Our team can discuss installation, operation and suitability for your application.

METLAN Distribution

Let's assess your spraying application

Stay on this page and send us your sprayer details. Our team will review the machine, crop and proposed application.
