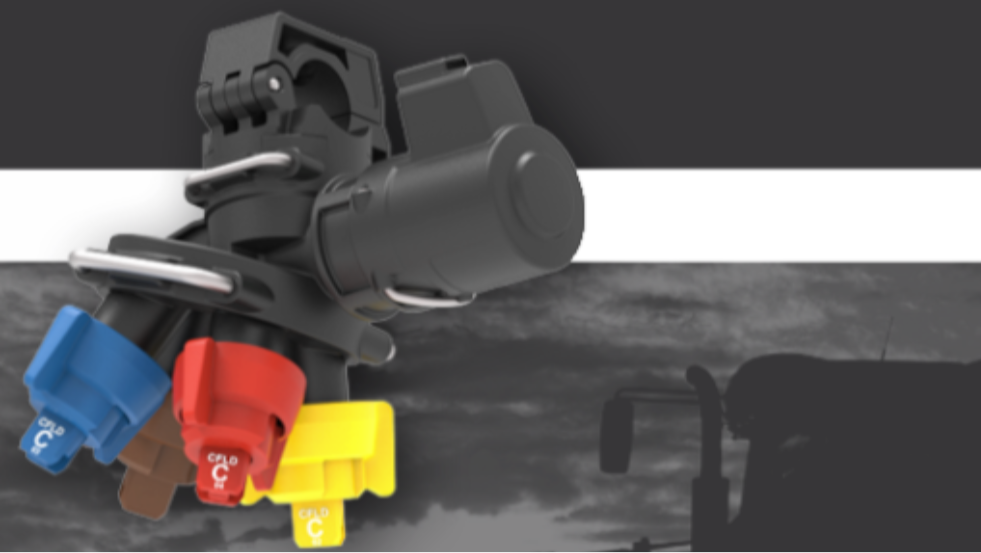

Flowtron PWM Sprayer Control

Improve control of spray application on your existing sprayer.

METLAN Distribution works in partnership with ARAG to offer Flowtron PWM control, with practical advice on equipment suitability, integration and setup.

Call METLAN Distribution: 0483 954 813

Discuss your sprayer upgrade

What does PWM do?

Pulse-width modulation rapidly switches nozzle valves on and off. Adjusting how long each valve stays open controls its average flow, allowing application adjustments while maintaining the selected operating pressure within the system’s working range.

This helps manage spray output without relying solely on pressure changes.

Understanding PWM

Practical control features

  • PWM nozzle control

    Adjust nozzle output through pulsing, with equipment and nozzle selection suited to the intended application.

  • Turn compensation

    Adjust output across the boom to account for the different speeds of inner and outer nozzles during a turn.

  • ISOBUS integration

    Operate the IBX100 ISOBUS Flowtron controller through a compatible ISOBUS display. METLAN Distribution can help confirm display requirements and supported functions.

  • Spot-spraying integration

    Flowtron supports integration with compatible weed-detection systems. Required hardware, software and supported functions depend on the selected configuration.

  • Multi-rate control

    Manage up to 16 independent application rates across the boom, subject to the selected system configuration.

  • Additional machine functions

    Configure auxiliary outputs and hydraulic controls for supported sprayer functions. Discuss the requirements for your machine with METLAN Distribution.

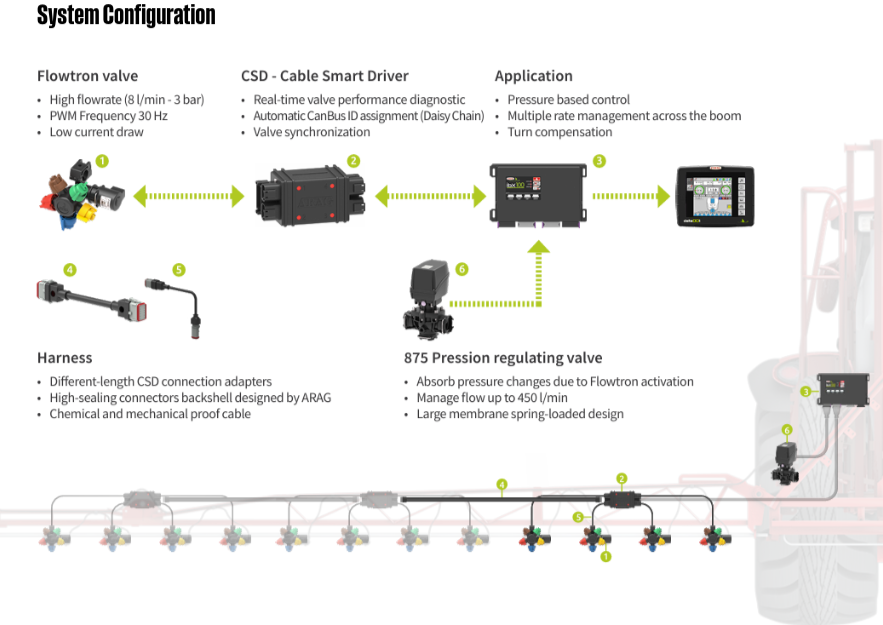

IBX100 ISOBUS Flowtron features

Application and control features

  • Integration with compatible AI vision systems for spot spraying and automatic weed detection.
  • Management of up to 16 independent rates across the boom.
  • Dual-rate modes: Even/Odd and On/Off.
  • Configurable auxiliary output, operated through the ISOBUS Virtual Terminal, for functions such as a secondary pump, lighting kit or air sleeve.
  • Pressure-based control.
  • Turn compensation.

Technical features

  • Status LED for operating and error indications.
  • Watertight connectors with bayonet coupling.
  • High-resistance aluminium housing.
  • Up to 13 water sections.
  • Up to 9 hydraulic controls.
  • Variable application management.
  • ISOBUS File Server for exporting settings and tank profiles.
  • Main screen with customisable operating data.
  • Simultaneous level management for two tanks.
  • Compatibility with third-party ISOBUS auxiliary inputs using Type 2 controls.
  • PWM control of four boom hydraulic movements.
  • Customisable controls for simultaneous boom movements.
  • Front tooling management.
  • Adjustment mode with pump PWM control.

Available functions depend on the installed hardware, software, display and system configuration. Contact METLAN Distribution to confirm requirements for your machine.

Can Flowtron suit your sprayer?

Talk to us about your current machine and what you want to achieve. We can help assess the control system, boom layout, nozzle equipment and display before recommending a configuration.

When you enquire, please include:

  • Sprayer make and model.
  • Boom width and nozzle spacing.
  • Existing display and spray controller.
  • Whether you want PWM application control or a spot-spraying integration.
  • Photos of the current setup, where available.
Enquire about Flowtron

Product information and technical resources

Visit ARAG’s IBX100 ISOBUS Flowtron product page for current features, technical information and available manuals, ordering layouts and software downloads.

View ARAG product information and downloads

Explore the ARAG range

Loading store locator from Stockist store locator...

Plan your sprayer upgrade

Tell METLAN Distribution about your sprayer and application goals. We’ll help you work through suitable equipment, integration and support options with our dealer network.
